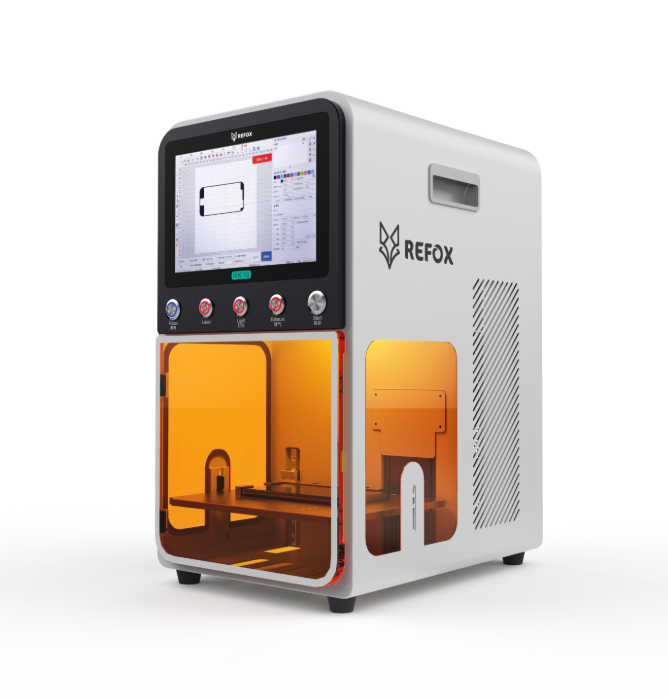

REFOX RK10 UV Laser Machine
The REFOX RK10 is a professional UV laser machine designed specifically for mobile phone repairs. Equipped with a cold light UV laser, it excels at separating front glass, back glass, and screen bezels with precision. The machine features a built-in operating system and integrated pattern library, supports remote online updates, and enables precise laser marking on a variety of materials. With a wireless keyboard and mouse, one-button start, and automated design, it’s engineered for efficiency and ease of use.
Applications
- Phone Repair: High-precision, non-destructive removal of front glass, back glass, middle frame, and screen brackets; engraving of logos on phone back covers.
- Material Marking: Supports laser marking on metals, plastics, leather, glass, and other materials.
- Industrial Use: Ideal for precision processing and marking across various manufacturing applications.
Features
- Wide Applicability: Compatible with iPhone 13 and newer original screens, Android middle frames, and various materials including plastics, glass, ceramics, metals, wood, and leather.
- High-Precision Separation: Achieves 0.01 mm marking accuracy for safe, error-free repairs.
- Automatic Focusing: Photoelectric sensing enables one-click auto-focus functionality.
- Easy Operation: Built-in marking system with preloaded phone patterns—no external computer required.
- Remote Updates: Easily download the latest model patterns directly online.
- Safety Protection: Equipped with smoke extraction and UV-blocking protective cover to reduce harmful gases and odors.
- Multi-Language Support: Includes 20+ languages such as English, Chinese, Arabic, French, German, Italian, Japanese, Korean, Russian, Spanish, Thai, Turkish, and more.
Attention
- Preheating: After pressing the laser button, wait one minute for preheating before use.
- Do Not Modify: Avoid altering circuits or disassembling laser components.
- Indoor Use Only: Never operate outdoors or without material under the laser.
- Lens Protection: Always remove and replace the lens cap before and after use to prevent dust buildup.
- Ventilation & Temperature: Ensure good airflow. Do not use in environments above 35°C or run continuously over 2 hours to prevent overheating.
- Laser Safety: Never look directly at the beam or reflected light—serious eye damage may occur.
- Fault Handling: Power off immediately and contact after-sales support if abnormal noises or faults occur.
- Transport Safety: Avoid drops or strong shocks during transport.
- Rest Periods: Allow 5 minutes of rest after every 3–5 hours of use to extend lifespan and maintain performance.
- Auto-Focus Safety: Keep hands clear of the laser workspace during auto-focus.
- Focus Range: Effective focus height is 0–65 mm.
- Marking Area: Maximum area is 175 × 175 mm—not suitable for iPad edge adhesives.
Package List
- 1 × Laser Machine
- 1 × Power Cable
- 1 × Wireless Keyboard
- 1 × Wireless Mouse
- 1 × Metal Testing Material
- 1 × Hexagon Wrench Set
FAQ
- What are the main uses of the UV laser machine?
- It’s primarily used for separating screen front glass, removing bezel adhesives, disassembling brackets, and removing back glass. It also supports engraving and marking tasks.
- Which models’ screen front glass can it separate?
- It can separate the original front glass of iPhone 13 series and newer models. Do not use on screens with replaced front glass, as the OCA glue may differ.
- Is it safe for the screen when separating the front glass?
- Yes. The built-in templates use optimized laser parameters to prevent screen or polarizer damage.
- What is the maximum printing area of the laser machine?
- 170 × 170 mm.
- What is the maximum supported height?
- 65 mm.
- Can it remove bezel adhesive from curved screens?
- Yes, but a slope adjustment bracket is required.
- What’s the difference between UV and red-light laser machines?
- The UV laser uses a shorter wavelength, resulting in higher precision and minimal heat diffusion—ideal for iPhone 13 and newer models, back glass, screen brackets, and Android middle frames. The red-light laser is primarily for back glass removal.
- Can the built-in drawings be downloaded locally, and will new models be added?
- Yes. Existing patterns are stored locally, and the machine can update online for new models when connected to the internet.
- Can cracked glass still be separated?
- Yes, cracked glass does not affect normal operation.
- What is the warranty period?
- The REFOX RK10 UV Laser Machine comes with a 13-month warranty.
